RF cable assemblies act as transmission lines for radio frequency (RF) signals traveling from one point in a system to another (e.g., PC board to PC board, PC board to the antenna, equipment to the antenna, equipment to equipment, etc.)
Coaxial cables are designed with a center conductor, an insulation layer, a braided copper mesh, and an external layer. The benefits of using high-quality materials: it is durable and reaches a much higher transmission speed of 10Mbps.

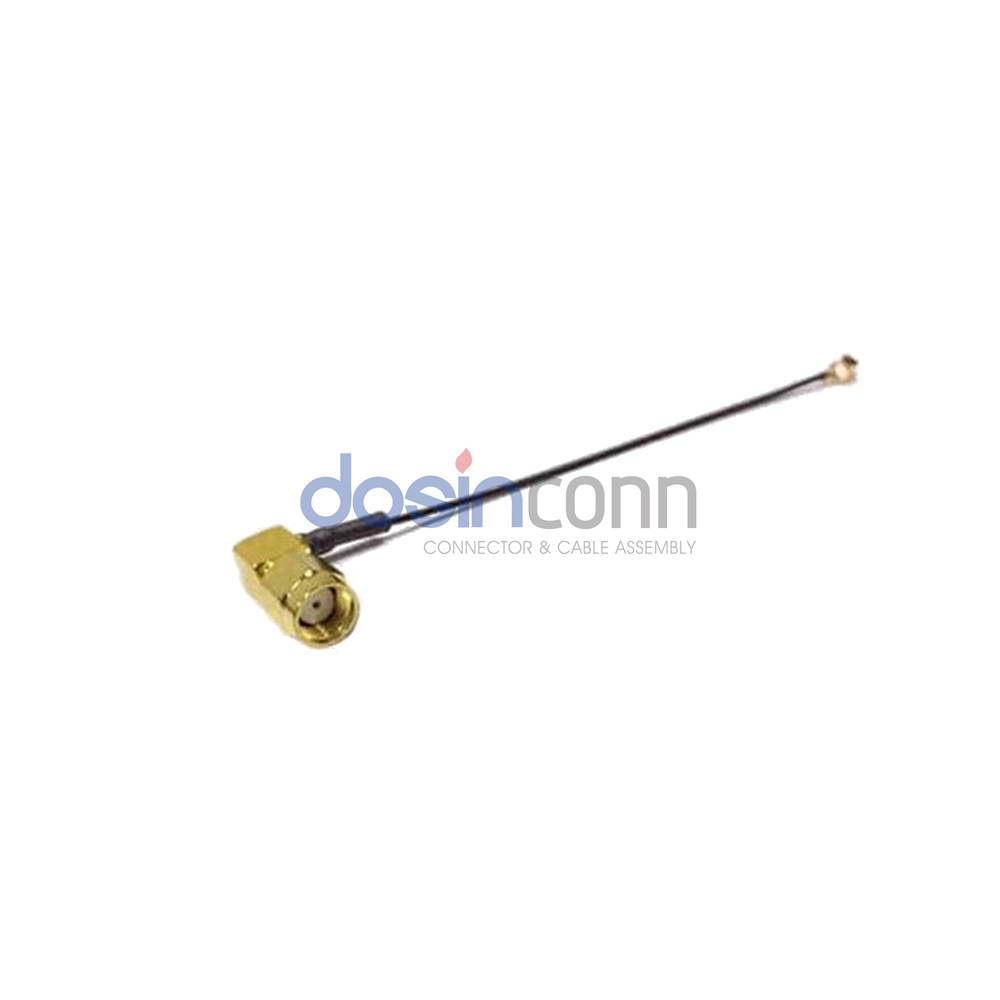

| Style | SMA to ULF-3 |
|---|---|
| 1st Connector | RP SMA Plug |
| 1st Contact Gender | Female |
| 1st Connector Orientation | Right Angle |

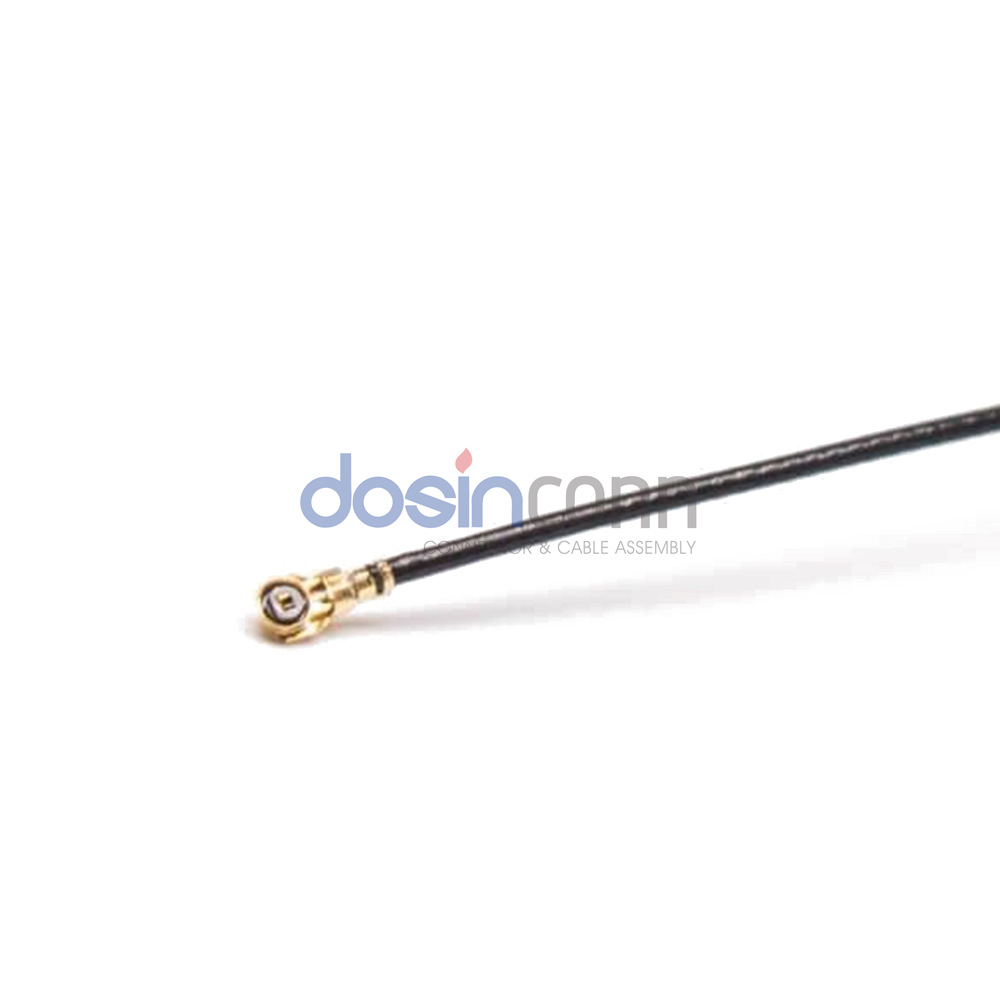

| 2nd Connector | ULF-3 Jack |
| 2nd Contact Gender | Female |
| 2nd Connector Orientation | Right Angle |
| Cable Type | |
| Cable Length | 15cm |
| Impedance | 50 Ω |
|---|---|
| Frequency Range | 0-6GHz |
| Style | SMA to ULF-3 |
|---|---|
| 1st Connector | RP SMA Plug |
| 1st Contact Gender | Female |
| 1st Connector Orientation | Right Angle |
| 2nd Connector | ULF-3 Jack |
| 2nd Contact Gender | Female |
| 2nd Connector Orientation | Right Angle |
| Impedance | 50 Ω |
| Frequency Range | 0-6GHz |
| Cable Type | |
| Cable Length | 15cm |
